Product description
HOME > Establishment > Product description

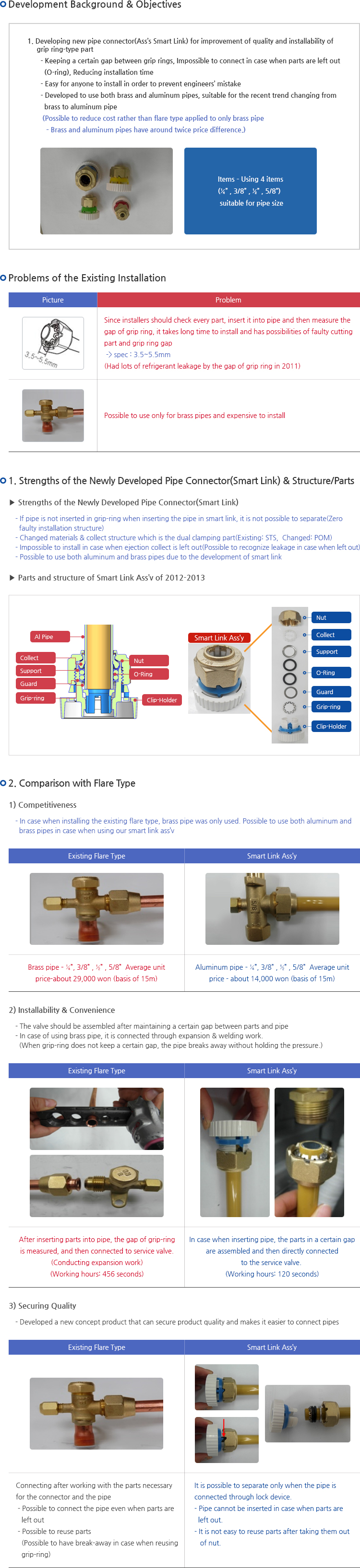

| Section | 2010 | 2011 | 2012~2013 | |||
|---|---|---|---|---|---|---|
| Name | Flare Type | Grip-ring Type | Smart Link Type | |||
| Clamping Method | Clamping nut after pipe flare work |   |
Inserting coated pipe and then clamping nut after inserting grip parts |  |
Clamping nut after inserting coatied pipe into all-in-one smart link parts |  |
| Structure | Flare |  |
O-Ring crimp-type |  |
Dual clamping O-Ring crimp-type structure |  |
| Strength | - Familiar as an old way to use - Easy to purchase as materials like nut are generally used |
- Leakage prevention - Improving installability |
- Leakage prevention PL accident - prevention(Collect added) |
|||
| Weakness | - Lots of leakage defects | - Possibility to have misassembling | - Nut should be clamped in a straight line with nipple. | |||
